MAXUS eDELIVER 5

Versatile mid-size electric panel van engineered for high-efficiency urban and regional operations
The MAXUS eDELIVER 5 sits at the heart of the electric LCV range, offering a strong balance between payload, driving range, interior volume, and technology. It is designed for fleets and owner-operators that require flexibility across different body sizes without compromising efficiency or driver comfort.

Body Styles and Sizing

The eDELIVER 5 is available in four configurations: L1H1, L1H2, L2H1, and L2H2.
Overall length is either 4,800mm (L1) or 5,250mm (L2), while overall height varies between 1,960mm (H1) and 2,180mm (H2).
The consistent width of 1,874mm ensures easy manoeuvrability in urban environments while still providing excellent internal width for cargo.

Load space length ranges from 2,654mm to 3,042mm, and load space height increases to 1,675mm on high-roof models, allowing operators to stand inside the cargo area on H2 variants.

Cargo Capacity and Payload

Cargo volume spans from 6.6m³ up to 8.9m³, making the eDELIVER 5 suitable for parcel delivery, trades, refrigerated conversions, and service bodies.
Payload capability reaches up to 1,265kg depending on seating layout and configuration, ensuring it remains practical even when fully equipped with tools or racking.

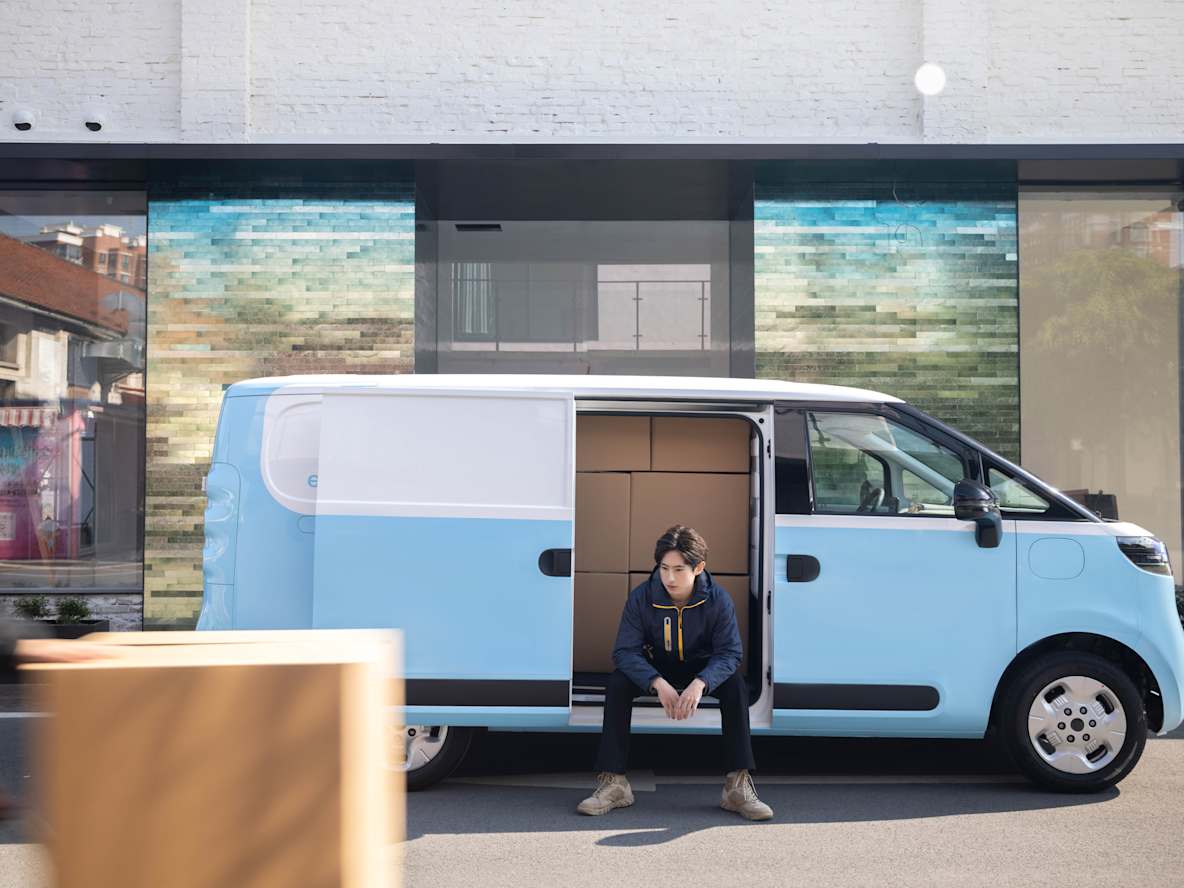

The wide sliding side doors and a load space width of 1,704mm (1,250mm between wheel arches) allow efficient pallet loading and easy forklift access.

Battery, Range and Charging

All eDELIVER 5 variants are powered by a 64kWh lithium-ion battery with liquid cooling and heating for consistent performance year-round.

WLTC combined range reaches up to 335km, while urban driving can extend close to 490km, making it ideal for multi-shift city operations without mid-day charging.

Charging flexibility is a key strength:

DC rapid charging restores the battery from 20% to 80% in approximately 36 minutes
11kW AC three-phase charging achieves the same in around 4 hours

This makes overnight depot charging straightforward while retaining the option for rapid public charging when required.

Performance and Driving Experience

A 120kW electric motor delivers 240Nm of torque, providing smooth, quiet acceleration even under load.
Top speed is 120km/h, ensuring motorway capability, while acceleration from 0–50km/h in under 5 seconds supports confident merging and urban responsiveness.

Front-wheel drive combined with electric power steering ensures predictable handling and a tight turning circle, particularly valuable in delivery routes and congested city streets.

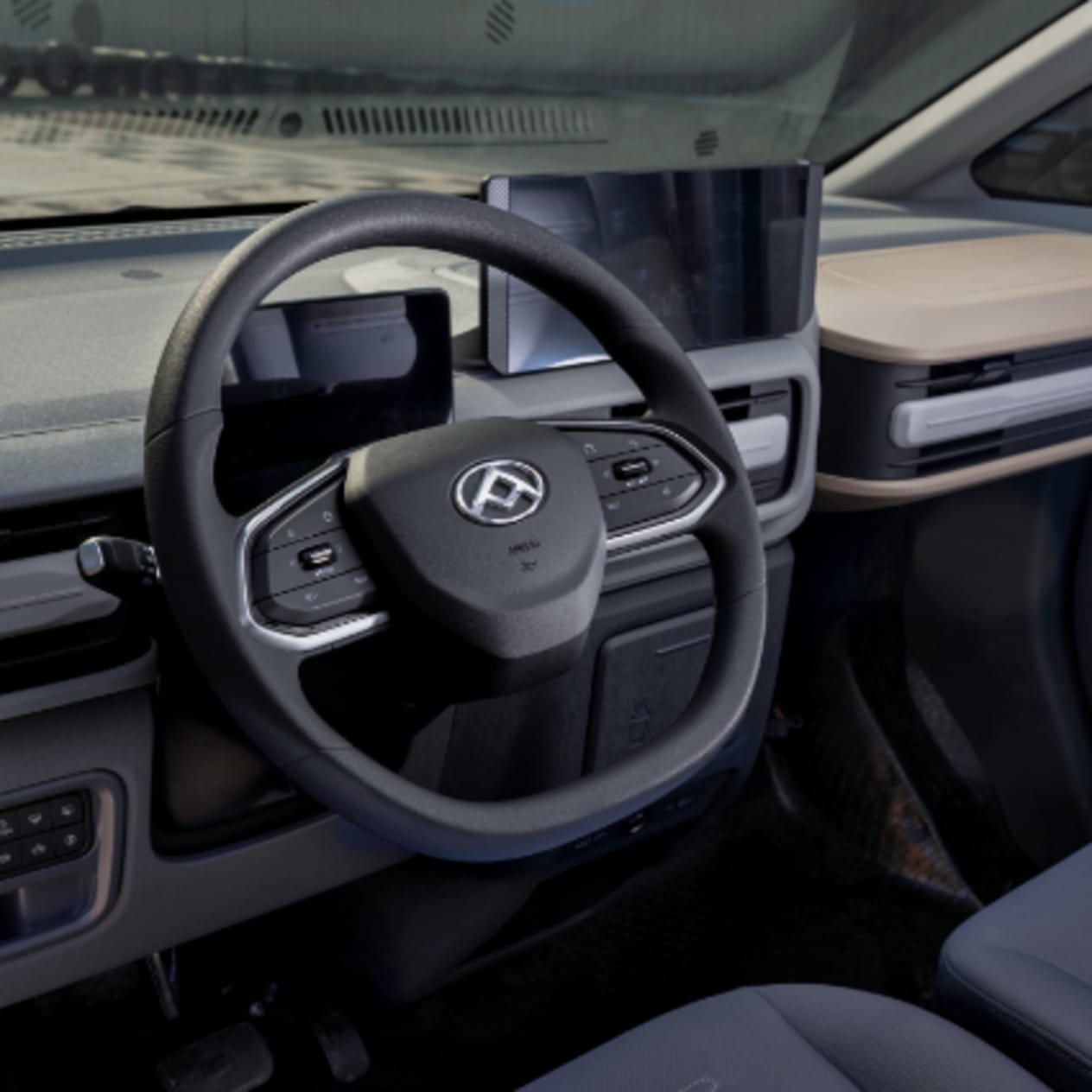

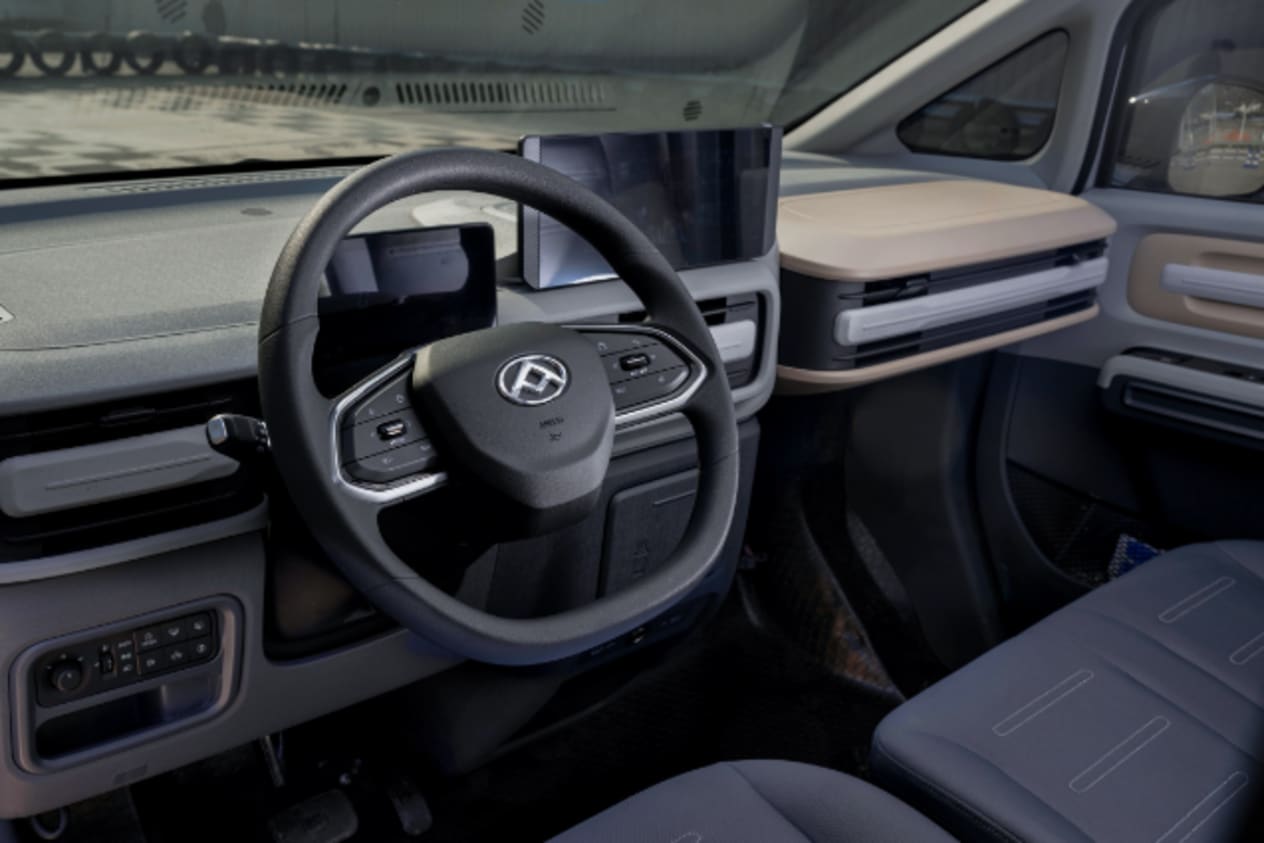

Interior, Technology and Comfort

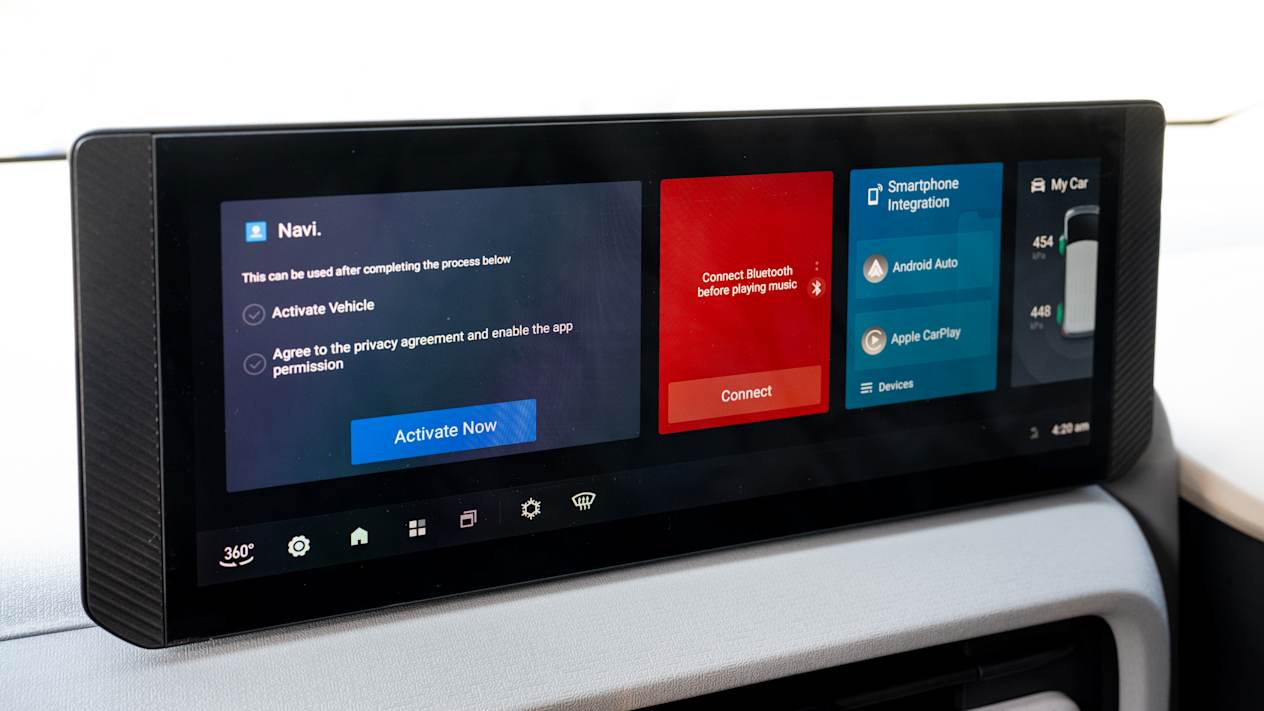

The cab is designed to support long working days. A 12.3-inch touchscreen with wireless Apple CarPlay and Android Auto comes as standard, along with DAB radio, Bluetooth connectivity, and USB inputs.

Heated front seats, power windows, keyless start, and LED interior lighting are all standard across the range, improving driver comfort and reducing fatigue.
