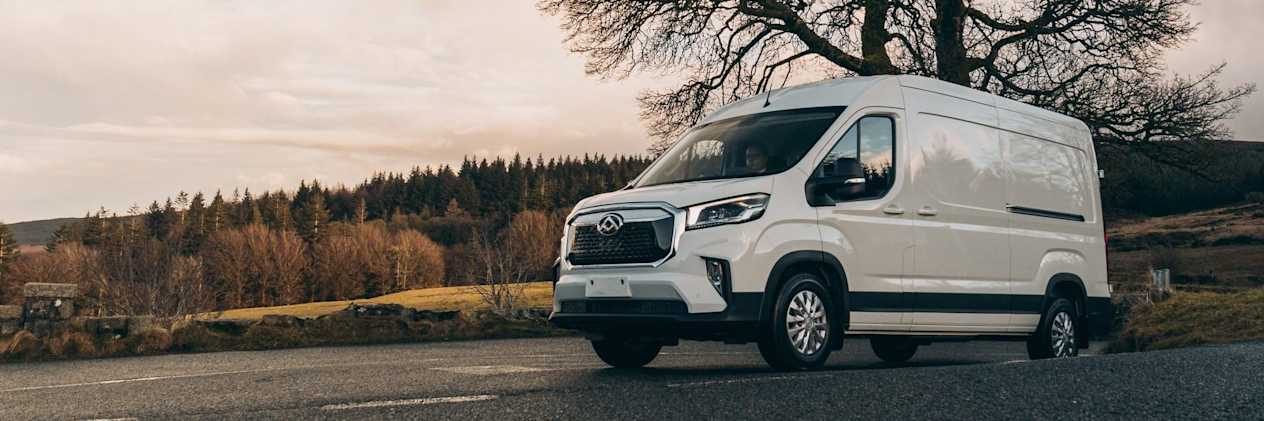

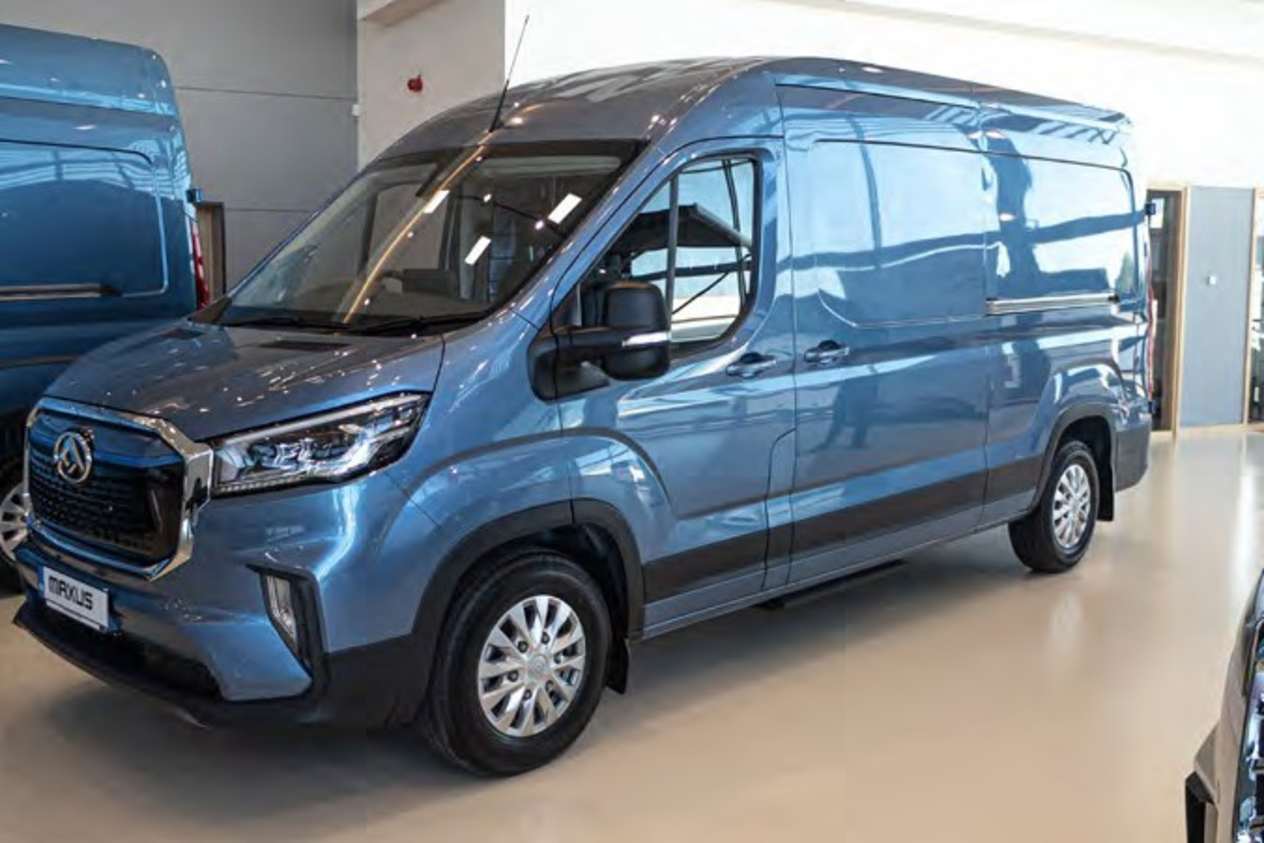

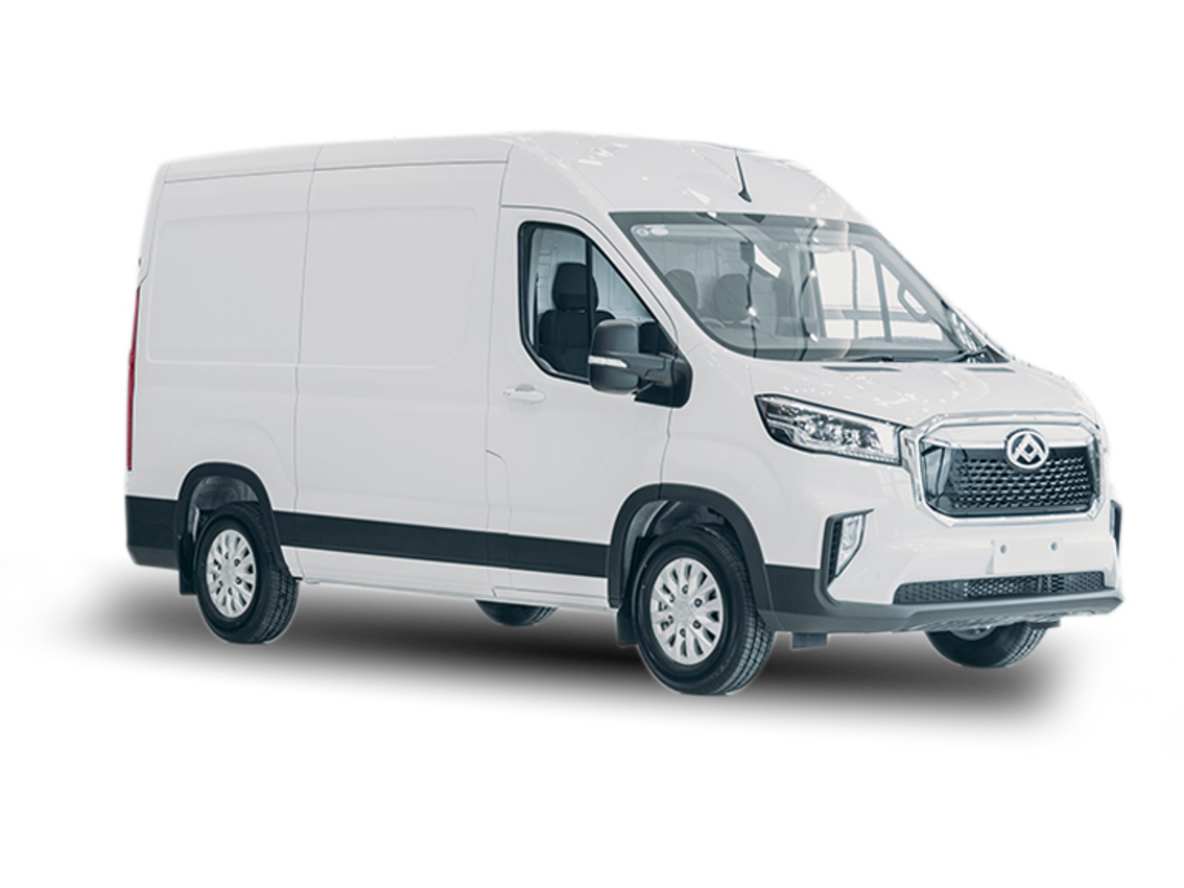

The New eDeliver 9
eDeliver 9

e Deliver 9

The pure driving experience

The e DELIVER 9 is designed using 9.2m laser welding, the longest in the industry.

The structure is built from 54% high strength steel and PHS and it has accumulated 2 million kilometres of whole vehicle full environment test verification

Strong design with emphasis on strength and payload.

SD + LCA-Base Version

The Lane Departure Warning System can determine whether the van is changing lane, even in low-visibility weather conditions. In the event of danger, an acoustic and visual signal alerts the driver of the potential impending threat.

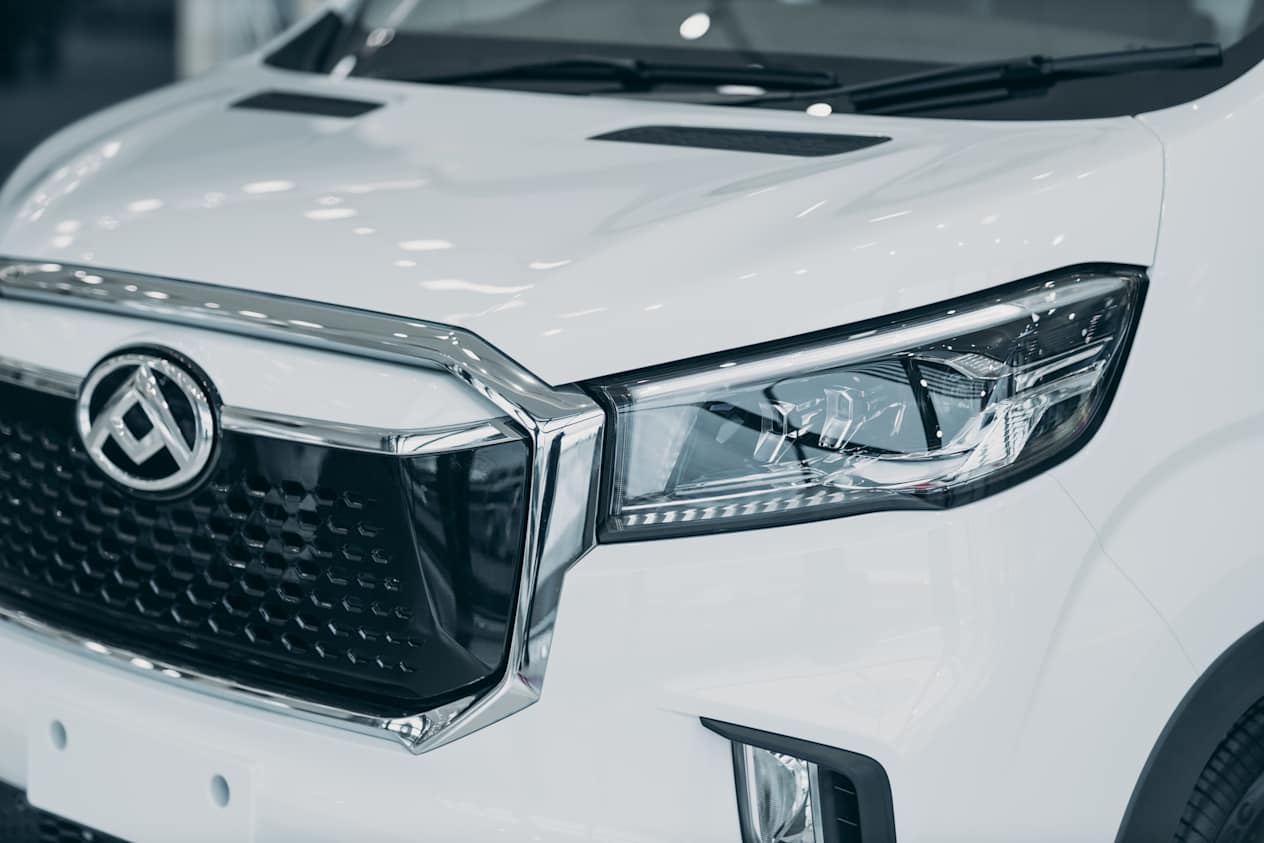

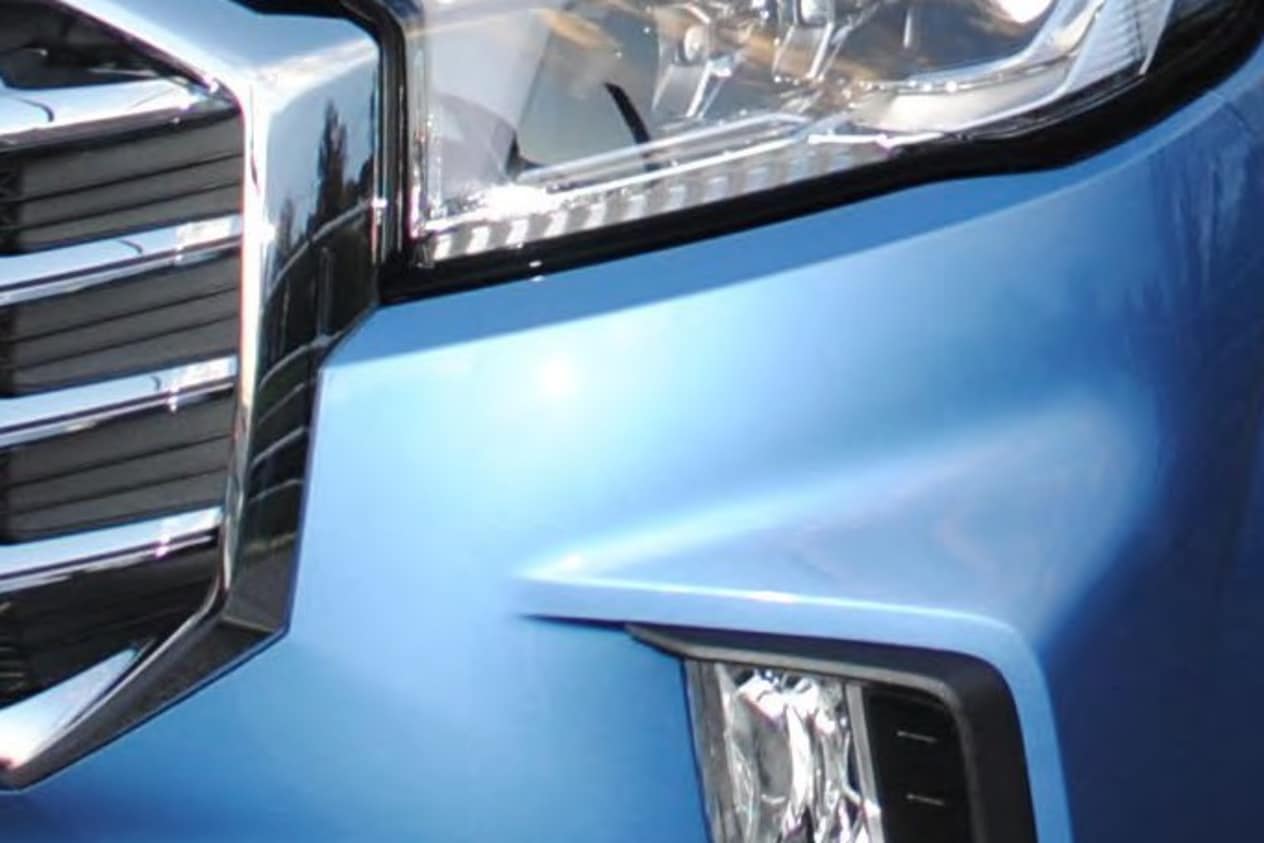

High Beam Recognition

This manages the activation and deactivation of the main beam headlights, increasing visibility and reducing the risk of dazzling when driving at night, automatically recognising vehicles driving in the opposite direction.

Electric heating Side Mirror

Heated electrically operated door mirrors ensure great rear visibility in all weather conditions.

Structure

9.2m laser welding, the longest in the industry. 54% high strength steel and PHS. Accumulated 2 million kilometres of whole vehicle full environment test verification

MAXUS eDELIVER 9MHLHLH
Capacity (kWh) 51.5kWhCapacity (kWh) 72kWhCapacity (kWh) 51.5kWhCapacity (kWh) 72kWhCapacity (kWh) 88.55kWh
WEIGHTS
GVM (kg)35003500350035003500
CVW (kg)23002460234025202640
Max front axle load (kg)19501950195019501922
Max rear axle load (kg)19001900190019001828
Payload (kg)120010401160980860
Towing capacity (unbraked) (kg)1500 (750)1500 (750)1500 (750)1500 (750)1500 (750)
ENGINE
Drive TypeRHD/LHDRHD/LHDRHD/LHDRHD/LHDRHD/LHD

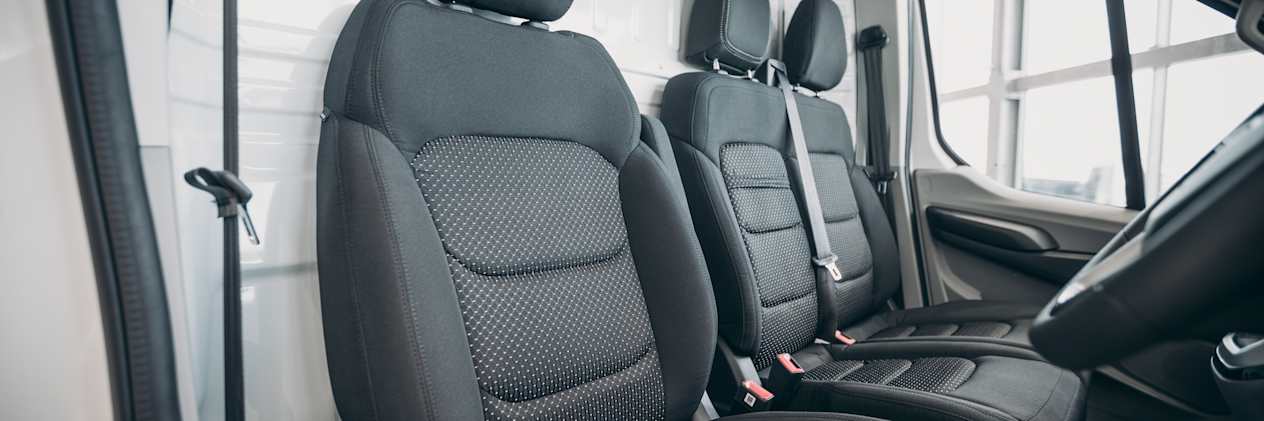

Number of seats33333
Rated power/peak power (kW)70/15070/15070/15070/15070/150
Rated torque/Max. torque (N.m)160/310160/310160/310160/310160/310
Max speed (km/h)100100100100100
Acceleration 0-50km/h (sec)5.75.75.75.75.7
DIMENSION
Dimension :L *W *H (mm) (A,B, C)5546×2062×25255546×2062×25255940×2062×25255940×2062×25255940×2062×2525
Wheel base (mm) (D)33663366376037603760
Length cargo space (mm)(E)30193019341334133413
Max width cargo space (mm) (F)18001800180018001800
Max width cargo space between wheel arches (mm) (G)13661366136613661366
Max height cargo space (mm) (H)17921792179217921792
Slide door width (mm) (I)12691269126912691269
Overhang Front (J) / Rear (k)1020/ 11601020/ 11601020/ 11601020/ 11601020/ 1160
Slide door height (mm) (L)15701570157015701570
Turning radius (m)6.76.77.47.47.4
Cargo volume (m³)9.79.711.011.011.0
CHARGING
Charging time (AC 100%) h/POWER (11kW)68688.5
Charging time (DC 80%) min4040404045

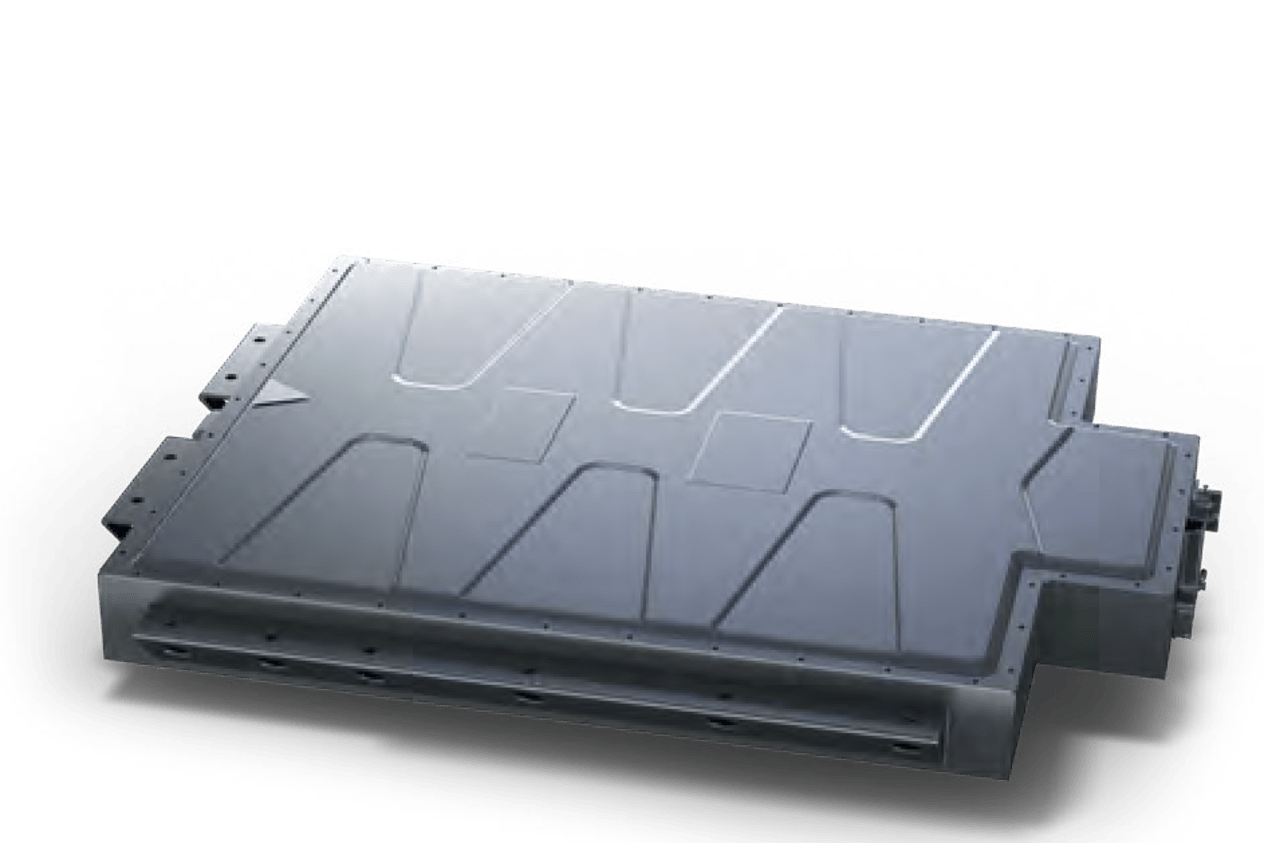

Battery capacity (kwh)51.57251.57288.55
energy consumption WLTP combined (kWh/100km)29.4431.0629.4431.0631.03
RANGE
WLTP city Miles / (kms)147 (237)179 (288)147 (237)179 (288)219 (353)
WLTP Combined Miles / (kms)112 (180)146 (235)112 (180)146 (235)185 (296)
